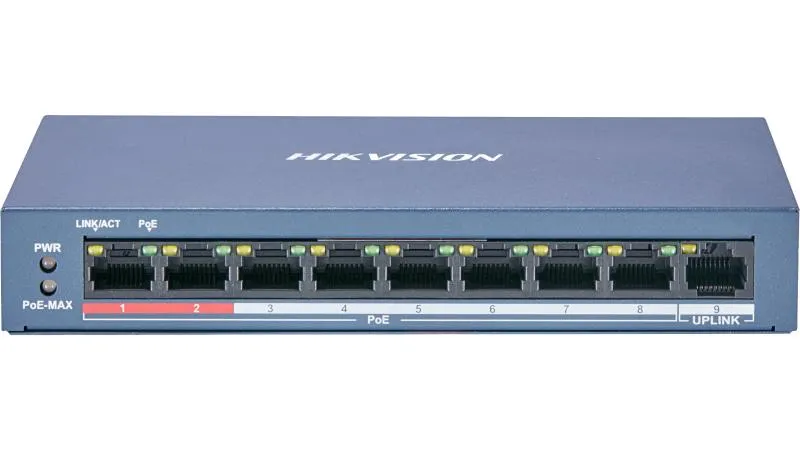

Hikvision 8 Port PoE Switch DS-3E0109P-E – High-Performance Network Switch for IP Cameras

Overview of the Hikvision DS-3E0109P-E 8 Port PoE Switch

The Hikvision DS-3E0109P-E is an advanced 8-port PoE (Power over Ethernet) switch designed to deliver reliable and efficient network connectivity for IP cameras, NVR systems, and other PoE-enabled devices. With 8 x 10/100 Mbps PoE ports and 1 x Gigabit uplink port, this switch ensures seamless data transmission and power supply, making it ideal for surveillance systems, small businesses, and home security setups.

Key Features of the Hikvision 8 Port PoE Switch

1. High-Speed PoE Connectivity

• 8 x 10/100 Mbps PoE ports with IEEE 802.3af/at compliance
• Supports up to 15.4W per port (802.3af) and 30W per port (802.3at)
• Total PoE budget: 57W, ensuring stable power delivery to multiple devices

2. Gigabit Uplink for Enhanced Performance

• 1 x Gigabit Ethernet uplink port for high-speed data transfer
• Reduces network bottlenecks and improves bandwidth efficiency

3. Plug-and-Play Installation

• Simple setup with no configuration required
• Auto-negotiation for optimal speed and duplex mode

4. Robust and Compact Design

• Metal housing for durability and heat dissipation
• Wall-mountable and desktop placement options
• Fanless operation for silent performance

5. Advanced PoE Management

• Auto power detection to prevent damage to non-PoE devices
• Overload and short-circuit protection for enhanced safety

Why Choose the Hikvision DS-3E0109P-E PoE Switch?

The Hikvision DS-3E0109P-E is a cost-effective and reliable solution for IP surveillance systems, offering:
✔ Stable Power & Data Transmission – Ensures uninterrupted operation of PoE cameras and devices.
✔ Scalability – Easily expandable for growing security networks.
✔ Energy Efficiency – Reduces cabling needs and power consumption.
✔ Compatibility – Works seamlessly with Hikvision IP cameras, NVRs, and third-party PoE devices.

Ideal Applications for the Hikvision 8 Port PoE Switch

• Surveillance Systems – Powers IP cameras and connects to NVRs.
• Small Office/Home Office (SOHO) Networks – Provides reliable PoE and data connectivity.
• Retail & Business Security – Supports multiple PoE cameras for enhanced monitoring.
• Smart Home Installations – Connects PoE-based IoT devices like Wi-Fi access points and VoIP phones.

Technical Specifications

Conclusion

The Hikvision DS-3E0109P-E 8 Port PoE Switch is a powerful and efficient networking solution for IP surveillance and PoE applications. With high-speed data transfer, reliable power delivery, and a compact design, it is perfect for home security, business surveillance, and network expansions. Upgrade your PoE network with this high-performance switch for seamless connectivity and enhanced performance.
