Hikvision Port SMART POE Switch DS-3E1309P-E – Reliable & High-Performance Networking Solution

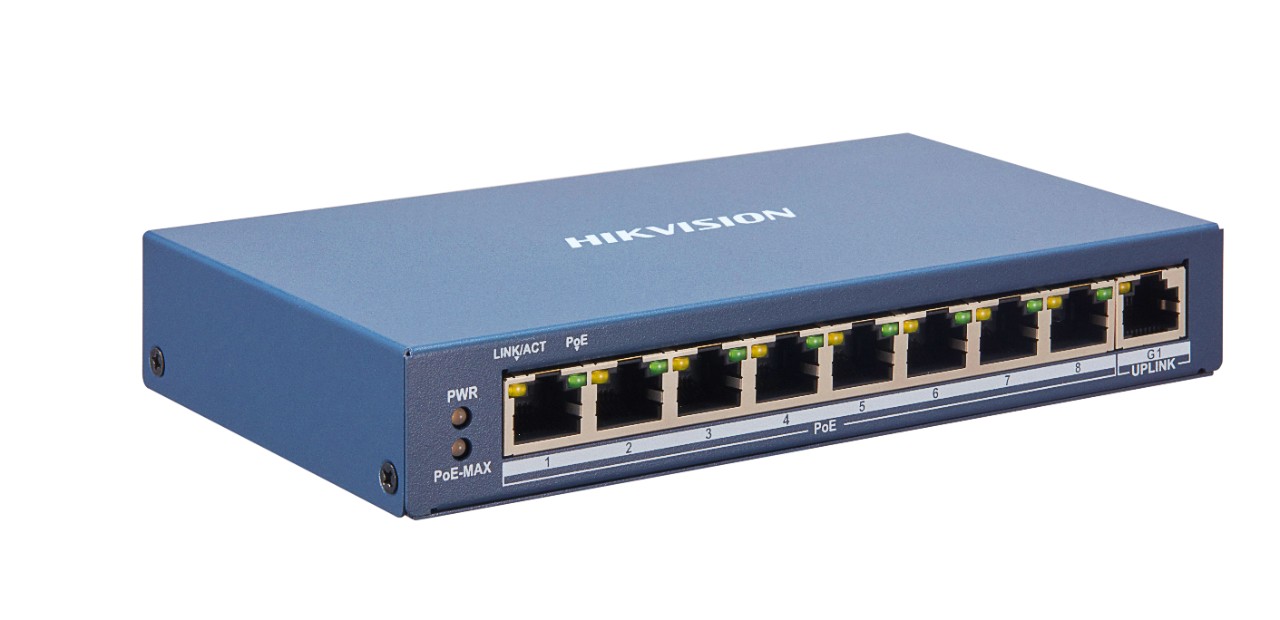

Overview of Hikvision DS-3E1309P-E 9-Port SMART POE Switch
The Hikvision DS-3E1309P-E is a high-performance 9-port SMART POE switch designed to deliver efficient power and data transmission for IP cameras, VoIP phones, and other POE-enabled devices. With 8 POE+ ports and 1 uplink port, this switch ensures seamless connectivity while supporting IEEE 802.3af/at standards for flexible power delivery.
Built for surveillance systems, enterprise networks, and small to medium-sized businesses, this switch offers advanced management features, high-speed data transfer, and reliable power over Ethernet (POE) capabilities. Whether you’re setting up a security system or expanding your network infrastructure, the Hikvision DS-3E1309P-E provides a cost-effective and scalable solution.
Key Features of Hikvision DS-3E1309P-E POE Switch
1. High-Performance POE+ Support
- 8 x POE+ ports (up to 30W per port)
- Compliant with IEEE 802.3af/at standards
- Total POE budget: 130W – powers multiple devices efficiently
2. Intelligent Power Management
- Auto power detection – prevents damage to non-POE devices
- Priority-based power allocation – ensures critical devices stay powered
- Energy-efficient design – reduces power consumption
3. Advanced Network Management
- VLAN support for network segmentation
- QoS (Quality of Service) prioritizes critical data traffic
- Port mirroring & cable diagnostics for easy troubleshooting
4. Plug-and-Play Installation
- Easy setup with auto-negotiation & auto-MDI/MDIX
- Compact & fanless design for silent operation
- Rack-mountable for flexible deployment
5. Robust Security & Reliability
- Loop detection & prevention (STP support)
- Broadcast storm control enhances network stability
- Durable metal housing for long-term use
Why Choose Hikvision DS-3E1309P-E SMART POE Switch?
The Hikvision DS-3E1309P-E is an ideal choice for IP surveillance systems, office networks, and smart home installations. Its 9-port configuration (8 POE+ ports + 1 uplink port) ensures seamless connectivity, while the 130W total power budget supports multiple high-power devices.
Ideal Applications:
- IP Camera Systems – Powers Hikvision cameras and other POE security devices
- VoIP Phone Systems – Reliable connectivity for business communications
- Wireless Access Points (WAPs) – Supports Wi-Fi networks with POE
- Small to Medium Business Networks – Scalable and easy to manage
Technical Specifications of Hikvision DS-3E1309P-E
| Feature | Specification |
|---|---|
| Ports | 8 x POE+ (10/100Mbps), 1 x Uplink (10/100/1000Mbps) |
| POE Standard | IEEE 802.3af/at |
| POE Power Budget | 130W |
| Power Input | 100-240V AC, 50/60Hz |
| Switching Capacity | 3.6Gbps |
| MAC Address Table | 4K |
| Dimensions | 200 x 105 x 44 mm |
| Operating Temperature | -10°C to +55°C |
Conclusion: Best SMART POE Switch for Surveillance & Networking
The Hikvision DS-3E1309P-E is a high-quality, cost-effective POE switch that delivers reliable power and data transmission for modern networks. With 8 POE+ ports, smart management features, and a robust build, it is perfect for security systems, business networks, and smart installations.
Where to Buy?
Looking for the best Hikvision POE switch? Purchase the DS-3E1309P-E from authorized dealers for genuine products and warranty support.
