Description

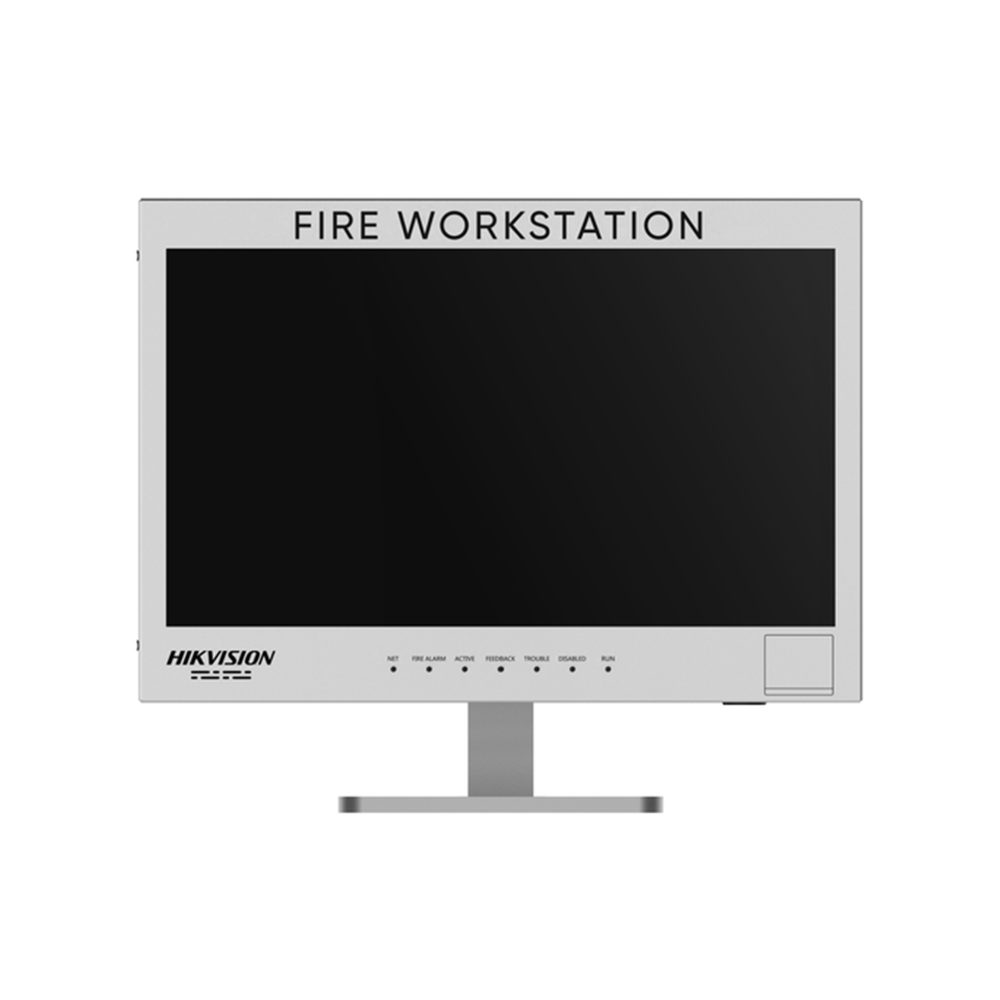

Hikvision HK-TX-1400 Fire Alarm Workstation – Intelligent Fire Control Room Graphic Display System
The Hikvision HK-TX-1400 Fire Alarm Workstation is an industrial-grade fire control room graphic display system designed for centralized monitoring and management of Hikvision fire alarm systems. It provides real-time graphical visualization of fire alarm events, device status, and building layouts, enabling operators to quickly identify alarm locations and respond efficiently during emergencies.
Built for continuous 24/7 operation, the HK-TX-1400 combines an industrial LCD display, dual Gigabit Ethernet interfaces, high-performance hardware, and multiple communication ports to deliver dependable performance in commercial, industrial, healthcare, educational, and government facilities. It serves as the central workstation for monitoring compatible Hikvision fire alarm control panels and LoRa wireless fire alarm systems.
Intelligent Fire Alarm Monitoring
The HK-TX-1400 receives alarm information from connected fire alarm control panels and displays events graphically on digital building floor plans. Operators can immediately identify the exact location of fire alarms, faults, supervisory events, and system status for faster emergency response.
Industrial-Grade LCD Display
Designed for continuous operation, the workstation features a built-in industrial LCD display with a 1366 × 768 resolution. The display delivers clear visualization of alarm events, system status, and building graphics while maintaining reliable performance in 24-hour fire control room environments.
Dual Gigabit Network Interfaces
The HK-TX-1400 is equipped with two 10/100/1000 Mbps Gigabit Ethernet ports supporting network redundancy, dual IP configuration, and network isolation. This enhances system reliability by maintaining communication if one network connection becomes unavailable.
High-Performance Hardware
Powered by an Intel Apollo Lake processor, the workstation includes:
- 4GB RAM
- 64GB SSD storage
- Industrial operating platform
- Stable 24/7 performance
The hardware is optimized for continuous fire alarm monitoring and fast graphical processing.
Multiple Communication Interfaces
The workstation supports flexible system integration through multiple interfaces, including:
- 2 × Gigabit Ethernet ports
- 1 × RS-232 port
- 4 × RS-485 ports
- 4 × USB 3.0 ports
- Audio input (MIC)
- Audio output (Line Out)
These interfaces enable integration with compatible fire alarm equipment and peripheral devices.
Real-Time Status Indicators
Seven front-panel LED indicators provide instant visual information, including:
- Fire alarm
- Transmission
- Startup
- Feedback
- Fault
- Shield/Disable
- System operation
These indicators allow operators to quickly assess system status at a glance.
Compatible with Hikvision Fire Systems
The HK-TX-1400 is designed for use with compatible Hikvision fire alarm control systems, including conventional and LoRa wireless fire alarm networks. It functions as the graphical management workstation for centralized fire monitoring and event management.
Reliable 24/7 Operation
The industrial-grade construction makes the workstation suitable for continuous use in demanding environments such as:
- Fire control rooms
- Commercial buildings
- Hospitals
- Hotels
- Shopping malls
- Warehouses
- Factories
- Schools
- Airports
- Government facilities
Its dependable design helps ensure uninterrupted fire alarm monitoring.
Easy Integration
The HK-TX-1400 communicates with compatible Hikvision fire alarm control panels and gateways, allowing operators to monitor fire alarms, faults, linkage events, and equipment status from one centralized workstation.
Technical Specifications
- Model: HK-TX-1400
- Display: Industrial LCD
- Resolution: 1366 × 768
- Processor: Intel Apollo Lake
- Memory: 4GB RAM
- Storage: 64GB SSD
- Network: 2 × Gigabit Ethernet (10/100/1000 Mbps)
- Interfaces: 1 × RS-232, 4 × RS-485, 4 × USB 3.0
- Audio: 1 × MIC input, 1 × Line output
- Status Indicators: 7 LED indicators
- Installation: Desktop workstation
- Application: Fire alarm graphical display and monitoring workstation
