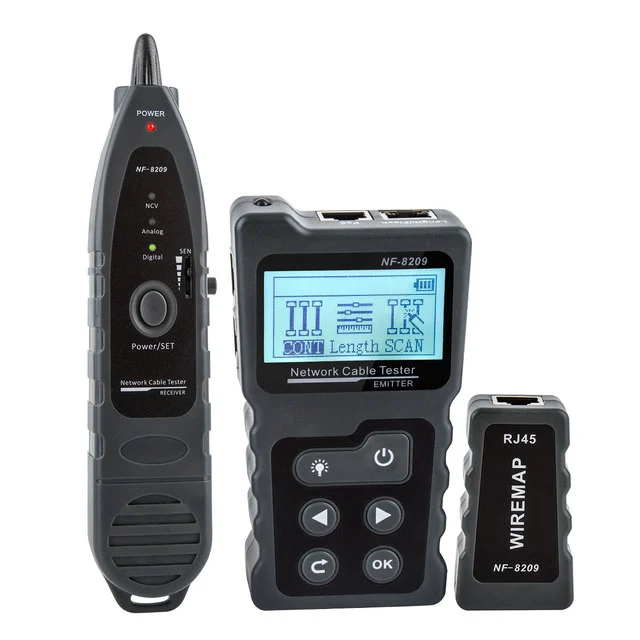

NOYAFA NF-8209 Network Cable Tester and Tracer – Professional Network Diagnostic Tool
The NOYAFA NF-8209 is a multifunction network diagnostic device designed for IT technicians, network engineers, and installers who need accurate cable testing, tracing, and troubleshooting capabilities. It combines cable tracing, wire mapping, PoE testing, cable length measurement, port flashing, and voltage detection in a single handheld device.
Digital and Analog Cable Tracing Modes
The NF-8209 supports digital, analog, and PoE cable tracing modes, allowing technicians to locate network cables quickly in complex wiring environments.
The anti-interference probe improves signal clarity and helps identify the correct cable even when multiple wires are bundled together. Adjustable sensitivity allows precise tracing in crowded network cabinets or patch panels.
Key advantages include:
-
Faster cable identification
-
Reduced interference from nearby cables
-
Accurate tracing through walls or cable bundles
-
Adjustable detection sensitivity
This makes the tool extremely useful during network maintenance and troubleshooting.
Cable Wiremap and Fault Detection
The NF-8209 performs comprehensive wiremap testing, helping users detect common cable faults instantly. It can identify problems such as:
-
Open circuits
-
Short circuits
-
Crossed wires
-
Split pairs
-
Incorrect pin sequence
These tests work with both STP (Shielded Twisted Pair) and UTP (Unshielded Twisted Pair) cables.
By displaying results clearly on its LCD screen, the tester allows technicians to locate faults quickly without damaging the cable.
Accurate Cable Length Measurement
Another important function is cable length testing, which helps determine how long a cable run is and where damage might occur.
The NF-8209 can measure LAN cable lengths between approximately 2–200 meters with high accuracy.
This feature helps technicians:
-
Identify broken cables
-
Estimate installation distances
-
Troubleshoot signal loss problems
-
Confirm correct cable installation
PoE Testing and Detection
The NF-8209 includes a Power over Ethernet (PoE) testing feature, which checks whether a network cable is supplying power and determines its voltage level.
The tester supports PoE voltage detection between 5V and 60V and identifies the PoE standard used, such as IEEE 802.3af or 802.3at.
This is extremely useful when installing or maintaining:
-
IP security cameras
-
VoIP phones
-
Wireless access points
-
Network switches and routers
It also displays the power supply mode and polarity, helping technicians verify safe and correct power delivery.
Hub Blink Port Identification
The Hub Blink function helps identify which switch port a cable is connected to. When activated, the tester makes the corresponding port light blink on the network switch or router.
This feature saves time when managing large patch panels or network racks because technicians can quickly locate the correct port without unplugging cables.
Non-Contact Voltage Detection (NCV)
For additional safety, the receiver includes a non-contact voltage detector that can detect live AC voltage in nearby cables.
This allows technicians to check whether a line is carrying electricity before connecting or testing cables, helping prevent damage to equipment and ensuring safer work conditions.
Clear LCD Display and Easy Operation
The tester features a 128×64 backlit LCD display that shows cable test results, PoE voltage readings, and diagnostic information clearly.
Additional usability features include:
-
Backlit screen for low-light environments
-
Adjustable probe sensitivity
-
Low battery warning system
-
Automatic power-off modes
These features make the device convenient and efficient for field technicians.
Portable and Durable Design
The NF-8209 is designed with a lightweight and durable casing that withstands daily use in professional environments. The transmitter and receiver are compact and easy to carry in a toolkit.
Typical power setup includes:
-
AAA batteries for the transmitter
-
9V battery for the receiver
This portable design allows technicians to perform testing anywhere, from server rooms to outdoor installations.
Typical Applications
The NOYAFA NF-8209 is widely used for:
-
Network cable installation and testing
-
LAN troubleshooting in offices and data centers
-
CCTV and IP camera installations
-
Telecom and internet service maintenance
-
Structured cabling verification
It is suitable for IT professionals, telecom engineers, system integrators, and network installers.
