Description

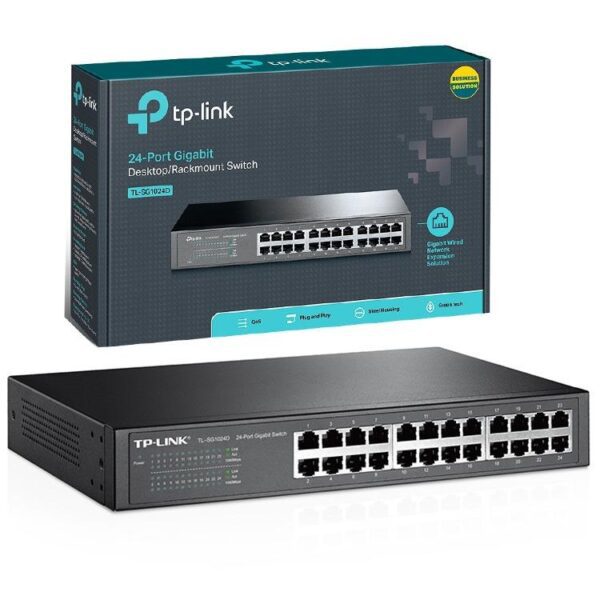

Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D – High-Performance Networking Made Easy
The TP-Link TL-SG1024D 24-Port Gigabit Rackmount Switch is designed to deliver exceptional performance for businesses and power users seeking a reliable, high-speed networking solution. Combining energy efficiency with robust architecture and plug-and-play convenience, this unmanaged switch is the ideal backbone for expanding your wired network without compromising on speed or stability.
Exceptional Gigabit Performance
The Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D features 24 auto-negotiating 10/100/1000 Mbps RJ45 ports, enabling seamless data transfers at gigabit speeds. With a 48 Gbps switching capacity, the switch ensures smooth performance, even under heavy load. Each port supports Auto MDI/MDIX, eliminating the need for crossover cables and simplifying installation.
Whether you’re connecting servers, desktops, printers, IP cameras, or NAS devices, the TL-SG1024D guarantees blazing-fast throughput with minimal latency. The non-blocking switching architecture forwards and filters packets at full wire speed for maximum performance.
Ideal for Business and Office Networks
The rackmount-ready design and standard 19-inch form factor make the TL-SG1024D perfect for integration into any server rack or IT infrastructure. It comes with rackmount brackets and mounting accessories, ensuring easy and secure deployment in data centers, small-to-medium businesses (SMBs), or enterprise networks.
Offices with bandwidth-intensive applications such as video conferencing, VoIP, cloud access, or large file transfers will benefit significantly from this gigabit switch. The device is built for long-term, continuous operation, thanks to its metal chassis and fanless design that promotes silent operation.
Plug and Play Setup
Designed with simplicity in mind, the Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D features true plug-and-play installation. There’s no need for configuration or complex software — just connect your devices, power it on, and your network is instantly operational. This makes it especially convenient for non-technical users or IT administrators looking to expand a network quickly.
Each port supports auto-negotiation for optimal speed and duplex mode, allowing the switch to dynamically adjust for maximum compatibility and performance across a wide range of devices.
Innovative Green Ethernet Technology
TP-Link incorporates its exclusive Green Ethernet technology into the Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D to help reduce power consumption. The switch automatically detects the link status and cable length, adjusting power usage accordingly. When a port is inactive or disconnected, power consumption is significantly reduced — without affecting network performance.
This eco-friendly feature makes the Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D an excellent choice for organizations looking to cut energy costs and reduce their carbon footprint without sacrificing speed or reliability.
Energy-Efficient Features Include:
-
Auto Power-Down: Reduces power consumption when ports are idle.
-
Power Budget Optimization: Adjusts power based on cable length.
-
Compliant with IEEE 802.3az (Energy Efficient Ethernet) standards.
Durable and Silent Design
The Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D features a rugged, compact metal case that enhances durability and heat dissipation. Its fanless architecture ensures completely silent operation, which is especially important in noise-sensitive environments like offices or classrooms.
Additionally, the switch is desktop and rackmount compatible, offering flexibility in deployment. Its internal power supply and surge protection ensure steady operation even in unstable power conditions.
Intelligent Data Transmission
This switch is equipped with IEEE 802.3x Flow Control for Full Duplex mode and Backpressure for Half Duplex mode, ensuring reliable data transfer and preventing packet loss during high-traffic moments.
The MAC address auto-learning and auto-aging features help optimize data routing and improve efficiency. The store-and-forward switching method checks data packets for errors before forwarding, maintaining a clean and efficient data stream across your network.
Key Specifications
-
Ports: 24× 10/100/1000 Mbps RJ45 ports with Auto MDI/MDIX
-
Switching Capacity: 48 Gbps
-
MAC Address Table: 8K
-
Buffer Memory: 4.1 Mb
-
Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x
-
Energy Efficiency: Supports IEEE 802.3az (Energy Efficient Ethernet)
-
Mounting Options: Rackmount and desktop
-
Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
-
Fanless Design: Yes (Silent Operation)
Use Cases
-
Small and Medium Businesses (SMBs): Expand your wired network to support servers, employee desktops, and printers.
-
Home Offices: Connect gaming PCs, media servers, and smart home hubs for high-speed performance.
-
Educational Institutions: Set up a stable, centralized network in classrooms or labs.
-
Retail Stores: Ensure smooth operation of point-of-sale systems, IP cameras, and inventory servers.
Why Choose the Tp-Link 24-Port Gigabit Rackmount Switch TL-SG1024D?
The TP-Link TL-SG1024D 24-Port Gigabit Switch is the ideal solution for anyone needing dependable, high-speed Ethernet connectivity. It’s built with performance, energy efficiency, and simplicity in mind. Whether you’re upgrading an existing network or creating a new one from the ground up, the TL-SG1024D provides the scalability and reliability essential for modern digital environments.
With TP-Link’s trusted brand reputation, excellent hardware build, and environmentally conscious design, the TL-SG1024D stands out as a cost-effective investment for any networking project.
