Description

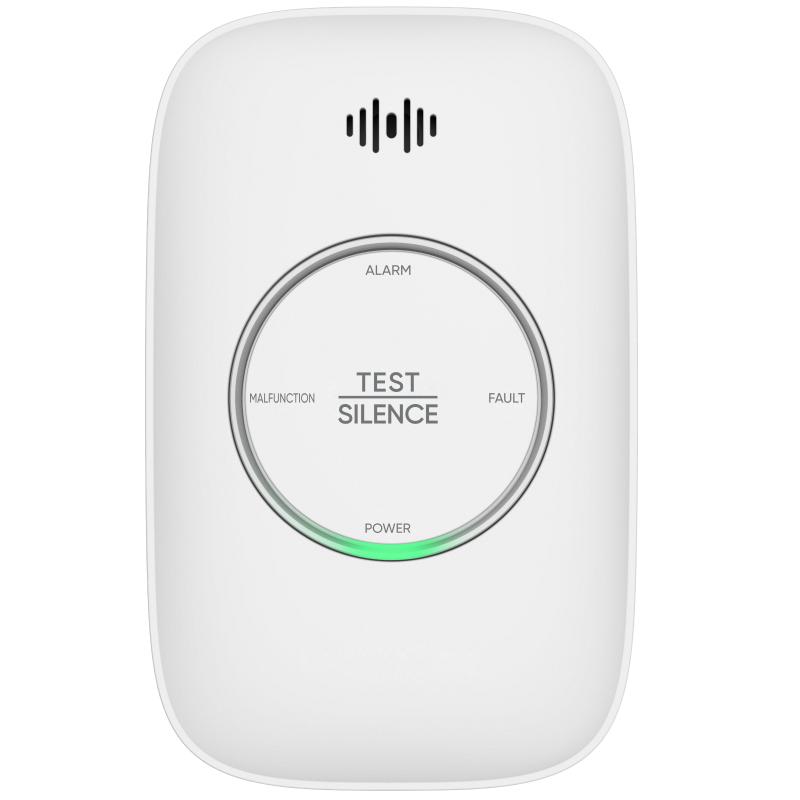

HF-GP110 (O-STD) Standalone LPG Gas Detector – Intelligent Propane Gas Leak Alarm
The HF-GP110 (O-STD) Standalone LPG Gas Detector is a reliable gas safety device designed to detect Liquefied Petroleum Gas (LPG/Propane – C₃H₈) leaks and provide an early warning before gas concentrations become hazardous. Using advanced catalytic combustion sensing technology, the detector continuously monitors the surrounding air and activates a loud audible alarm when LPG levels reach the preset alarm threshold. It also supports automatic control of a gas shut-off valve and exhaust fan, helping reduce the risk of fire or explosion caused by gas leaks.
Ideal for homes, apartments, restaurants, hotels, kitchens, offices, schools, commercial buildings, and other indoor environments using LPG, the HF-GP110 provides dependable gas leak protection with simple installation and low maintenance.
Accurate LPG Leak Detection
The HF-GP110 is specifically designed to detect Liquefied Petroleum Gas (LPG), including propane (C₃H₈). Its catalytic combustion sensor delivers fast and reliable detection while minimizing false alarms.
Key detection specifications include:
- Detects LPG (Propane C₃H₈)
- Measuring range: 0–25% LEL
- Alarm threshold: 10% LEL
- Fast response to gas leaks
This enables users to respond quickly before dangerous gas concentrations develop.
Loud Audible Alarm
When gas concentrations exceed the alarm threshold, the detector activates a powerful built-in siren to immediately alert occupants.
Features include:
- Alarm volume: 70–115 dB at 1 metre
- Immediate audible warning
- Clear indication of gas leakage
The loud alarm helps ensure occupants are notified quickly, even in busy environments.
Automatic Safety Outputs
The HF-GP110 supports external control outputs for enhanced safety.
It provides:
- Solenoid gas shut-off valve output
- Exhaust fan output
When connected to compatible equipment, the detector can automatically shut off the gas supply and activate ventilation during a leak, helping reduce potential hazards.
Intelligent Status Functions
The detector includes several built-in functions for convenient operation and maintenance, including:
- Alarm indication
- Test function
- Silence (hush) mode
- Fault indication
- Event log storage
- Sensor fault monitoring
These features improve reliability and simplify routine maintenance.
Reliable Catalytic Combustion Sensor
The catalytic combustion sensing element provides stable and accurate gas detection while offering excellent durability for continuous monitoring in indoor environments.
The sensor is designed to deliver dependable performance with low maintenance requirements.
Easy Indoor Installation
The compact detector is designed for wall installation in areas where LPG is used.
Recommended locations include:
- Residential kitchens
- Restaurants
- Hotels
- Apartments
- Commercial kitchens
- Food preparation areas
- Small businesses
- Utility rooms
Its compact housing blends neatly into indoor environments while providing continuous protection.
Durable Construction
The detector is built for reliable indoor use.
Technical specifications include:
- Power Supply: AC 220V
- Protection Rating: IP30
- Operating Temperature: -10°C to 55°C
- Humidity: ≤93% RH (non-condensing)
- Dimensions: 122 × 77 × 34 mm
These specifications make it suitable for a wide range of indoor installations.
Ideal Applications
The HF-GP110 (O-STD) is suitable for:
- Homes
- Apartments
- Restaurants
- Hotels
- Commercial kitchens
- Cafés
- Schools
- Offices
- Shops
- Residential buildings
It provides dependable LPG leak detection wherever propane gas is used.
Dependable LPG Safety Protection
The HF-GP110 (O-STD) combines catalytic combustion sensing, loud audible alerts, automatic valve and fan control, and intelligent monitoring into one compact gas detector. It offers an effective solution for protecting people and property from the dangers of LPG gas leaks.
