Description

IMOU N110-4P 4–10 Channel NVR with 4 PoE Ports

4–10 Channel Network Video Recorder

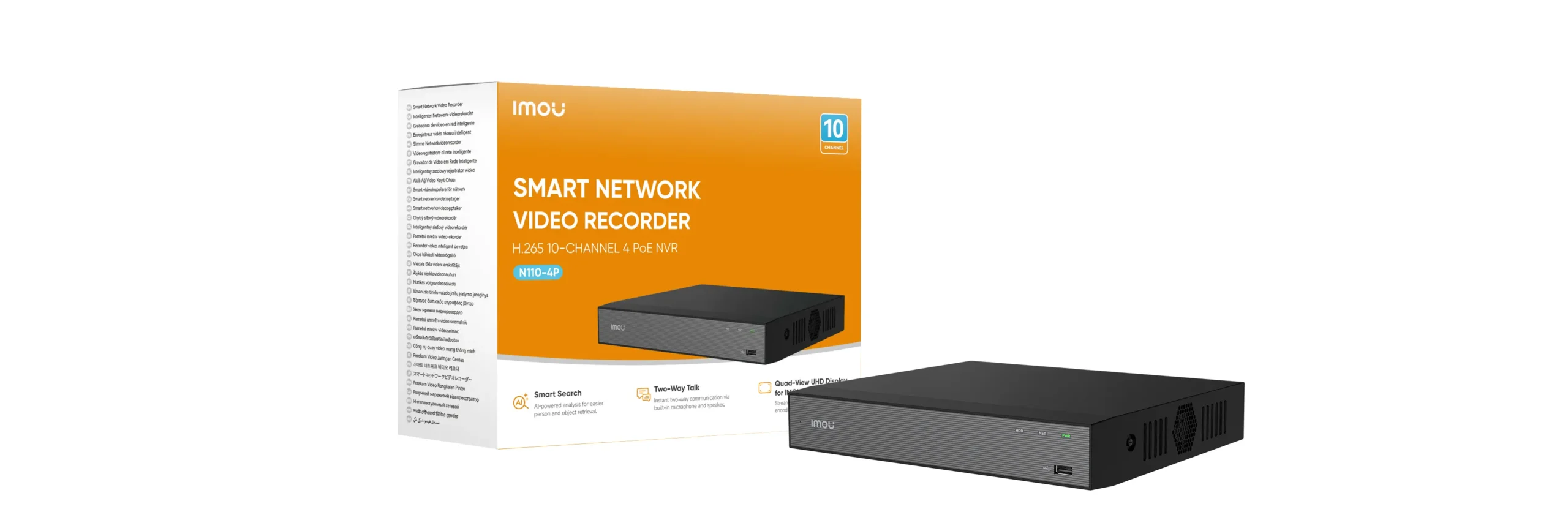

The IMOU N110-4P is a network video recorder designed for managing and recording IP CCTV cameras. It provides 4 built-in PoE ports for directly connecting compatible PoE cameras while supporting up to 10 network channels, making it suitable for CCTV installations that may need to expand beyond the four built-in PoE connections.

4 Built-In PoE Ports

The N110-4P has four PoE ports that can provide both network communication and power to compatible PoE cameras through Ethernet cables. This helps simplify installation because each connected PoE camera can use a single network cable for both power and data.

The PoE ports support IEEE 802.3af/at, making the recorder suitable for compatible IMOU PoE cameras and other supported PoE devices.

Up to 10 Network Channels

Although the NVR has four physical PoE ports, the system supports up to 10 network channels, allowing additional compatible network cameras to be incorporated into the surveillance system through the network connection.

This makes it suitable for users who want to start with a smaller CCTV installation and expand the system later.

4K HDMI Output

The N110-4P provides an HDMI output supporting up to 4K, allowing compatible high-resolution surveillance footage to be displayed on a monitor or television. It also includes a VGA output supporting up to 1080p.

This allows users to monitor live camera views and review recorded footage on a connected display.

H.265 Video Compression

The NVR supports H.265 video compression, helping reduce the amount of storage space and network bandwidth required for video recording while maintaining efficient video playback.

The available recording time will depend on the number of cameras, camera resolution, frame rate, compression settings and hard-drive capacity.

Up to 16TB HDD Storage

The N110-4P supports a single 3.5-inch SATA hard drive with capacity up to 16TB, providing substantial local storage for surveillance recordings.

The NVR itself does not necessarily include a hard drive, so the HDD should be confirmed when purchasing.

IMOU Camera Auto-Pairing

The N110-4P is designed to simplify the setup of compatible IMOU cameras through automatic pairing. Compatible cameras can be added to the NVR without complicated manual configuration, helping speed up installation.

Remote Monitoring

The NVR integrates with the IMOU Life app, allowing users to view and manage compatible cameras and recordings remotely when the system is connected to the internet. Business users can also use the IMOU Glow platform.

Smart Detection Support

When compatible IMOU cameras are connected, the NVR can retain many of the cameras’ smart detection functions. This can help users manage events involving people, vehicles and other detected activity through the surveillance system.

Technical Specifications

Key Features

• 4 built-in PoE ports for direct connection of compatible PoE cameras.
• Up to 10 network channels for flexible CCTV expansion.
• 4K HDMI output for high-resolution surveillance viewing.
• Up to 16TB HDD support for extended video storage.
• H.265 compression for efficient storage and bandwidth usage.
• IMOU Life app integration for remote monitoring and management.
• Automatic IMOU camera pairing for easier installation.
• HDMI and VGA outputs for flexible monitor connection.

Ideal Applications

The IMOU N110-4P is suitable for:

• Homes
• Shops
• Offices
• Warehouses
• Schools
• Residential compounds
• Small businesses
• Commercial premises
• Parking areas
• Small and medium-sized CCTV installations
